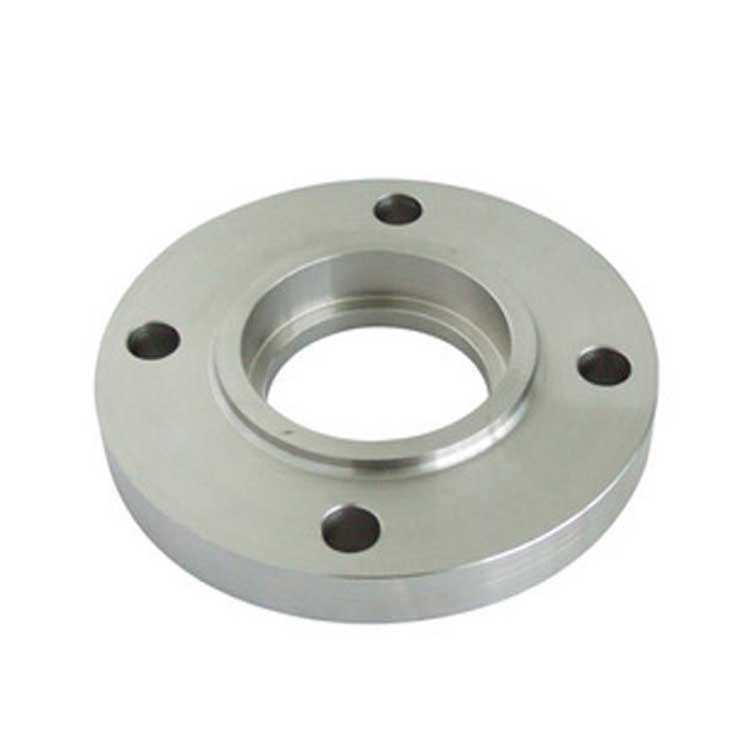

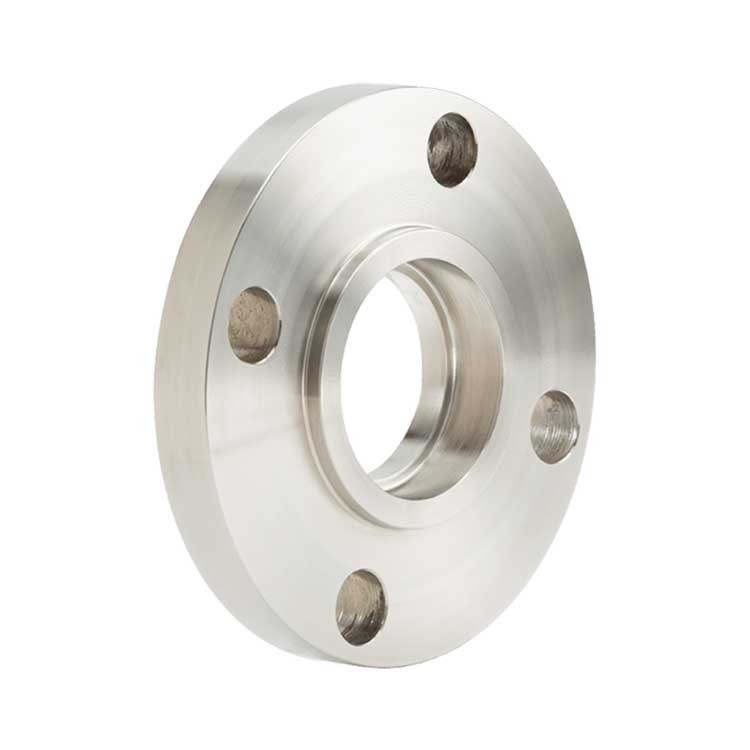

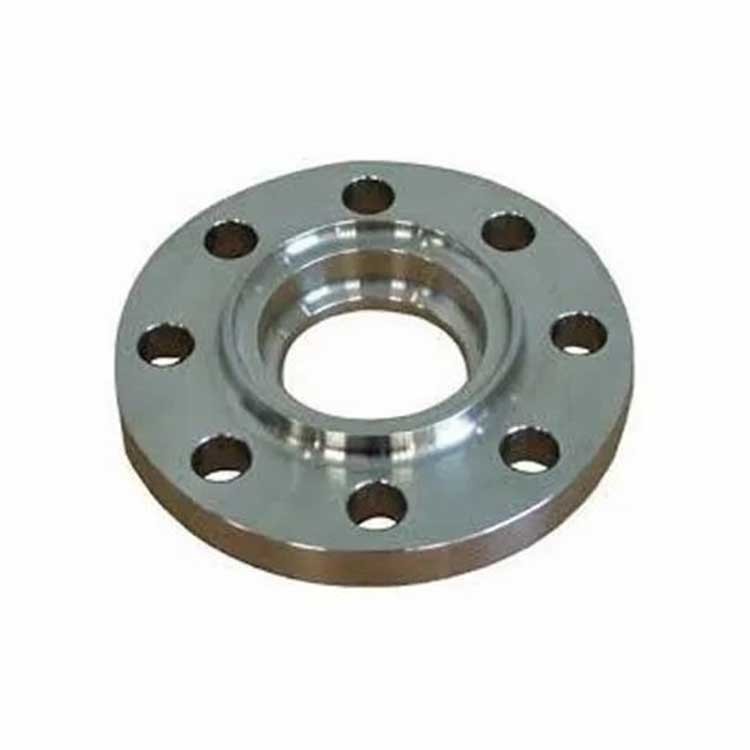

Socket weld flanges

Socket weld flanges are similar to a slip-on flange in design, but with a bore that is counter-bored to accept pipe. The diameter of the remaining bore is the same as the inside diameter of the pipe. A fillet weld around the hub of the flange attached the flange to the pipe. An optional interval weld may be applied in high stress applications. Its biggest use is in high pressure systems such as hydraulic and steam lines.

KSN can supply forged socket weld flange by all kinds of materials according to customer’s drawings and technical requirements.

The heat treatment and surface treatment for forged flanges will be performed according to customer’s requirements.
